For industrial filtration, balancing efficiency and energy consumption is an important topic. V-bank filters, with their unique structural design, effectively address the issues of insufficient filtration efficiency in pre-filters and high energy consumption with limited dust-holding capacity in HEPA filters, making them one of the most widely used filters. Today, we will take you deeper into understanding V-bank filters.

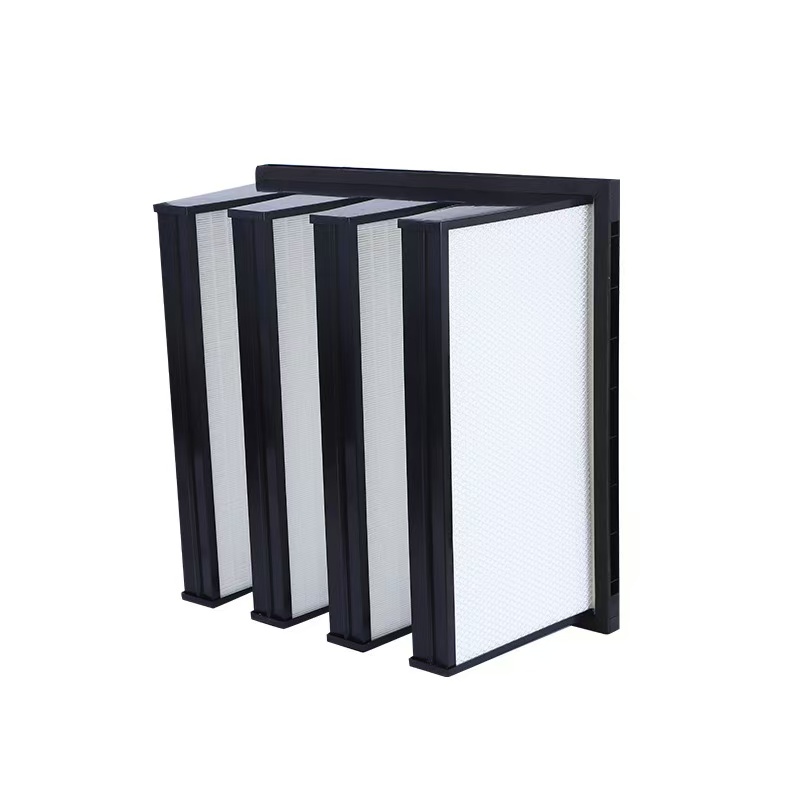

The V-bank filter consists of multiple panels arranged in a V-shape, which increases the effective filtration area while effectively reducing air flow resistance, thus lowering energy consumption. Its filtration grade typically ranges from medium efficiency to ultra-high efficiency (F5 to H14), serving as a core component in constructing tiered filtration systems.
A standard V-bank filter mainly consists of the following parts:
>> Filter Media: It is the core component of the V-bank filter, primarily made of fiberglass or synthetic fiber, which can effectively capture small particles.
>> Frame: Common frames for V-bank filters include galvanized frames, aluminum frames, and plastic frames, which can be customized according to customer needs.
>> Adhesive: Two stages in the production process of V-bank filters require adhesive. First, hot melt glue is used when folding the filter media to ensure fixed spacing between the pleats and prevent collapsing or sticking under airflow pressure. Second, polyurethane sealing glue is used during assembly at the edges of the filter media and the junctions with the frame to effectively prevent leakage.
>> Sealing Strips: Some models are equipped with polyurethane or neoprene rubber sealing strips on the frame to get an airtight seal with the device structure during installation.
The advantages of V-bank filters include:
>> High Dust-Holding Capacity: The dense pleating design significantly increases the filtration area (up to 2-3 times compared to standard panel filters), allowing for more dust accumulation and significantly extending service life.
>> Low Initial Resistance: A larger filtration area means a lower airflow velocity per unit area, directly resulting in a lower initial pressure drop.
>> High Efficiency: The combination of lower initial resistance and consistently low average resistance throughout its lifespan significantly reduces fan energy consumption, meeting energy-saving and environmental requirements.
>> Robust Structure: A sturdy frame and pleating design enable the filter to withstand high pressure differentials, reducing the deformation in harsh conditions.
>> Long Service Life: Compared to traditional filters, V-bank filters offer a longer lifespan, reducing the frequency of replacements.
V-bank filters primarily capture particles through the following three mechanisms:
>> Screening Effect (Interception): Particles larger than the fiber pore size are intercepted directly on the fiber surface.
>> Inertial Effect (Impaction): When the airflow changes direction around the filter fibers, larger particles cannot follow the airflow due to their inertia and will directly collide and adhere to the fibers.
>> Diffusion Effect: For very small submicron particles (e.g., <0.1 μm), they are influenced by Brownian motion from air molecules, leading to random movement that increases the likelihood of contact with and adsorption to the filter fibers.
The V-bank filter increases depth, requiring the air to pass through a longer, tortuous path, thus enhancing the opportunities for particle contact and capture by the fibers, improving single-pass filtration efficiency.
V-bank filters are widely used in various applications and commonly found in:
>> HVAC Systems: Serving as the HVAC or HEPA filter in central air conditioning systems for commercial buildings, hospitals, and schools.
>> Cleanrooms: Used as pre-filters protecting HEPA filters or as terminal filters in environments where a lower cleanliness is required.
>> Industrial Manufacturing: Used in painting workshops, food processing, electronic assembly, and pharmaceutical industries requiring high air quality.
>> Public Facilities: Used in ventilation systems for large public places such as airports, stations, and museums.
When selecting a V-bank filter, it is essential to understand some key performance parameters:
>> Filtration Efficiency: V-bank filters usually range from F5 to H14.
>> Rated Airflow: Filters, especially those for industrial applications, must match the designed airflow of the ventilation system. Otherwise, premature damage to the filter or increased energy consumption may occur.
>> Initial Resistance: The lower the pressure drop of a new filter at the rated airflow, the more energy-efficient it is.
>> Dust-Holding Capacity: This refers to the total amount of dust the filter can hold until it reaches its final resistance; this parameter directly determines the filter's service life.
>> Final Resistance: The resistance set value at which the filter needs to be replaced; it is typically recommended to be twice the initial resistance.
>> Replacement Time: Air filter manufacturers typically provide a suggested replacement time, which serves as a helpful suggestion to know when to replace the filter.
>> Confirm Direction: Before installation, check that the airflow direction arrow on the filter frame matches the actual airflow direction.
>> Clean the Installation Area: Thoroughly clean the filter installation area before installation to remove dust and debris.
>> Check Sealing: Ensure that the sealing strips on the filter frame are intact, flexible, and properly installed.
>> Smooth Insertion: Carefully slide the filter into the installation track or frame, avoiding any forceful impacts or twisting that could damage the filter material or sealing strips.
>> Tighten the Seal: For designs using compressed sealing, ensure that all fasteners (such as clips and bolts) are evenly stressed to adequately compress the sealing strip and form an airtight seal.
>> Regular Monitoring Data: Installing a differential pressure gauge on the system is the most efficient maintenance method. Regularly record and observe the pressure differential changes before and after the filter.
>> Visual Inspection: Periodically (such as quarterly), take the filter out and inspect it in a well-lit area for contamination. If the filter material appears dark, even if the pressure differential has not reached a critical point, it indicates a high dust load in the environment and may require shortening the replacement time.
>> Prevent Secondary Pollution: When cleaning or replacing filters, avoid scraping the filter material surface with hard objects. Used filters should be placed directly in a garbage bag for sealed disposal to prevent accumulated dust from falling and causing pollution.
The replacement cycle may vary between different filters, but all will have signals when their functionality is damaged. For details, refer to the material "Five Signs That Indicate Your Air Filter Needs to Be Replaced."
With the development of application industries, filters are continuously being updated. Amorair has over 20 years of experience in the air filtration industry; we'd like to make the following predictions for the development trends of V-bank filters:
>> Sustainable Materials: With a global push for a low-carbon economy, this trend has also extended to the air filtration industry, where more brands will begin to develop biodegradable or recyclable filter and frame materials to reduce environmental pollution.
>> Lower Resistance: Reducing resistance can save energy, a continual pursuit in the filtration industry. Future innovations may include new filter materials like nanofiber technology and gradient fiber structures that further lower initial resistance while maintaining or even improving efficiency, achieving deep energy savings.
>> Intelligent Technology: The trend towards industrial intelligence is unstoppable. Integrating pressure differential sensors and RFID chips to achieve real-time monitoring, prediction, and digital management of filter lifespan will be essential for the future development of filters.
As one of the most widely used air filters, the V-bank filter has a great performance at balancing efficiency, lifespan, and energy consumption through its scientific design. As a manufacturer of air filters, Amorair offers customized services for various V-bank filters to ensure your safety in life and production.
