Bag Filter vs. V-bank Filter, How To Choose?

In the realm of industrial and commercial air purification systems, bag filters and V-bank (V-shaped) filters play different yet crucial roles. When faced with these two mainstream medium to high-efficiency filtration technologies, many users often find themselves confused about which one best meets their needs. The answer isn't simply a matter of "which is better"; rather, it lies in accurately matching the application scenario. Understanding their design characteristics and performance boundaries is the first step toward making an informed decision.

1. Structural Design Differences

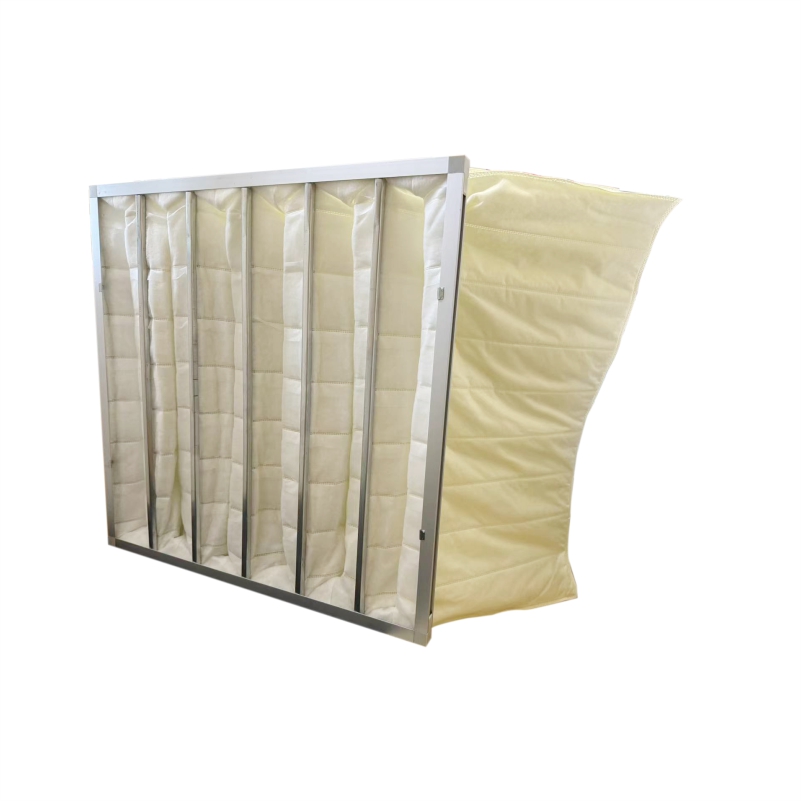

Bag filters consist of multiple bag-shaped filter media, each with a large dust-holding capacity. Their primary design goal is to increase the filtration area and dust capacity, allowing them to handle large airflow.

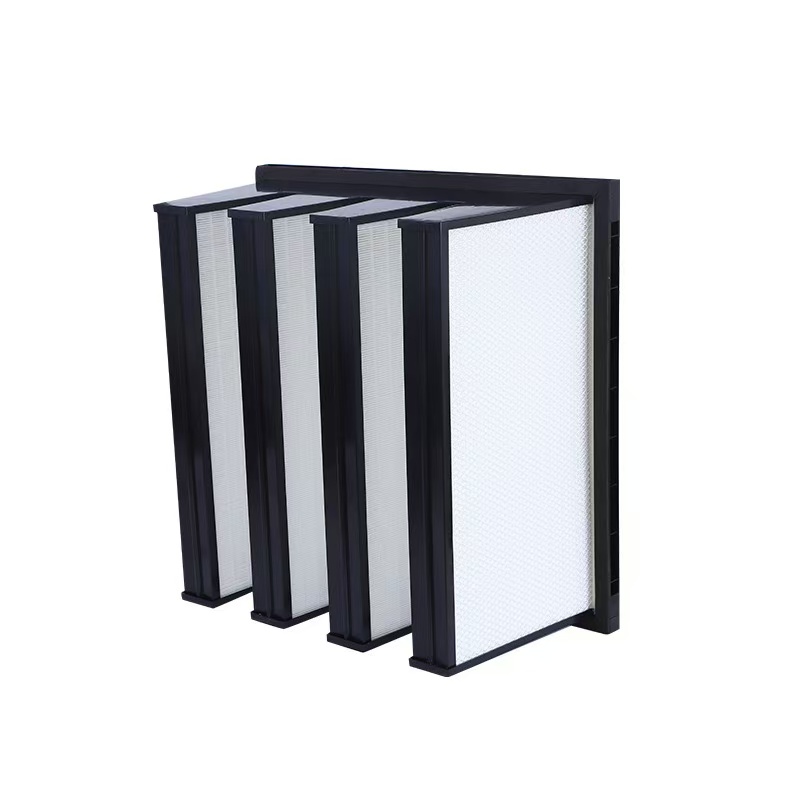

In contrast, V-bank filters utilize a pleated design to enhance the filtration area. This design provides a larger filtration surface within a limited volume while maintaining a low pressure drop, making it suitable for high-efficiency filtration needs.

2. Filtration Efficiency and Applications

Bag filters are mainly used to capture particles ranging from 1 to 10 microns. They serve as an important intermediary in multi-stage filtration systems, primarily designed to capture larger particles and reduce the burden on subsequent high-efficiency filters. They are ideal for scenarios requiring high airflow and significant dust capacity.

V-bank filters, on the other hand, are typically used to capture smaller particles. They are widely employed in environments with stringent air quality requirements, such as cleanrooms, electronics manufacturing facilities, and pharmaceutical labs.

3. Pressure Drop and Energy Consumption

Due to their design, bag filters have a relatively low initial pressure drop and lower energy consumption. However, as time passes, the accumulation of particles leads to an increase in pressure drop, necessitating regular replacement.

The pleated design of V-bank filters initially helps reduce pressure drop, and their higher filtration efficiency allows them to maintain a low pressure drop during effective filtration. This makes them better suited for environments that require sustained high efficiency and prolonged low pressure drop.

4. Dust Holding Capacity

Bag filters can hold a larger volume of particles, resulting in a higher dust-holding capacity. This makes them more practical in environments with high dust and particle pollution, reducing replacement frequency and extending service life.

While V-bank filters benefit from an increased filtration area due to their pleated design, their dust-holding capacity is generally lower than that of bag filters. This is particularly true when dealing with significant amounts of larger particulate pollution, necessitating more frequent replacements.

5. Maintenance and Replacement

Bag filters typically have a long service life due to their high dust-holding capacity. However, their replacement process can be more complex because their bag-like structure requires more maintenance space

V-bank filters, while having lower dust-holding capacity and shorter lifespan compared to bag filters, are designed for environments with high cleanliness standards. They are usually part of efficient filtration systems, making maintenance and replacement relatively straightforward.

Why Aren't There High-Efficiency Bag Filters?

1. Limitations of Structural Design

The design advantages of bag filters lie in their ability to handle large airflows of air with significant dust-holding capacity, primarily aimed at capturing larger particles. If they were designed as high-efficiency filters, the filtration resistance would increase significantly, leading to higher pressure drops. Consequently, they would be unable to provide the low-pressure drop and high airflow that their structure requires, resulting in an imbalance between efficiency and energy consumption.

2. Demands of Real-World Applications

Bag filters are typically used in medium-efficiency applications, often serving as pre-filters in multi-stage filtration systems. Their main goal is to extend the lifespan of high-efficiency filters while ensuring effective filtration in high airflow situations. Transitioning them to high or ultra-high efficiency filters would not only drastically increase material costs but also significantly shorten their lifespan due to their inability to handle the accumulation of pollutants associated with high-efficiency filtration.

The choice between bag filters and V-bank filters fundamentally hinges on a precise alignment of application needs and technical characteristics. Bag filters, with their capacity for handling high dust loads, ensure system stability and long-term operation in dust-heavy environments. Meanwhile, V-bank filters excel in safeguarding clean air in spaces that demand high precision and efficiency. They aren’t competitors; rather, they are reliable allies, each with its distinct roles in the filtration landscape.

Recognizing your specific environment—whether it requires high airflow and coarse filtration or high-precision clean air—is essential. The appropriate selection of filtration technology will ensure the best air quality with minimal energy consumption and maintenance costs.
