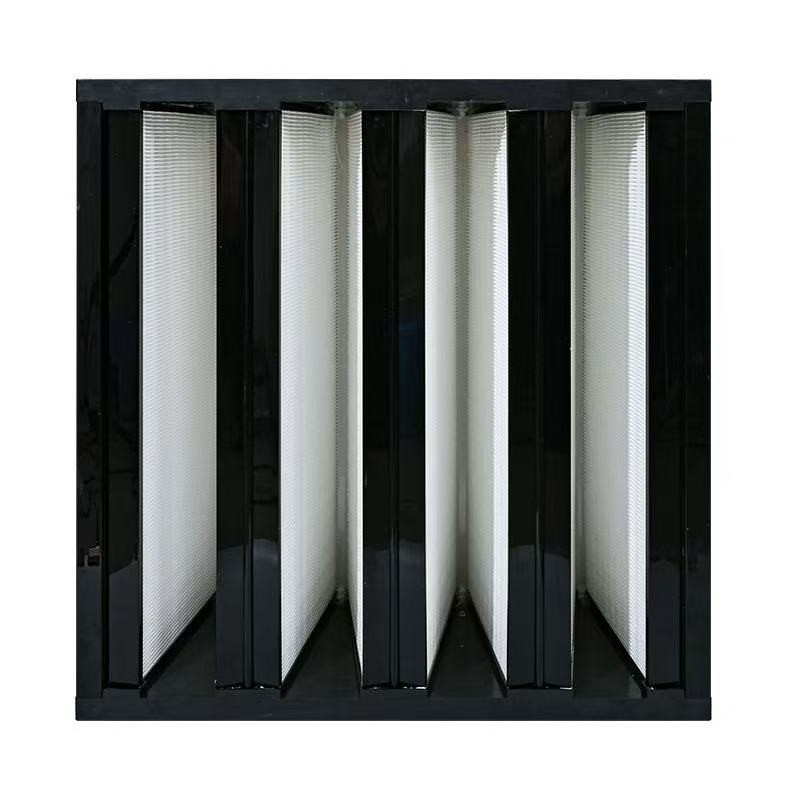

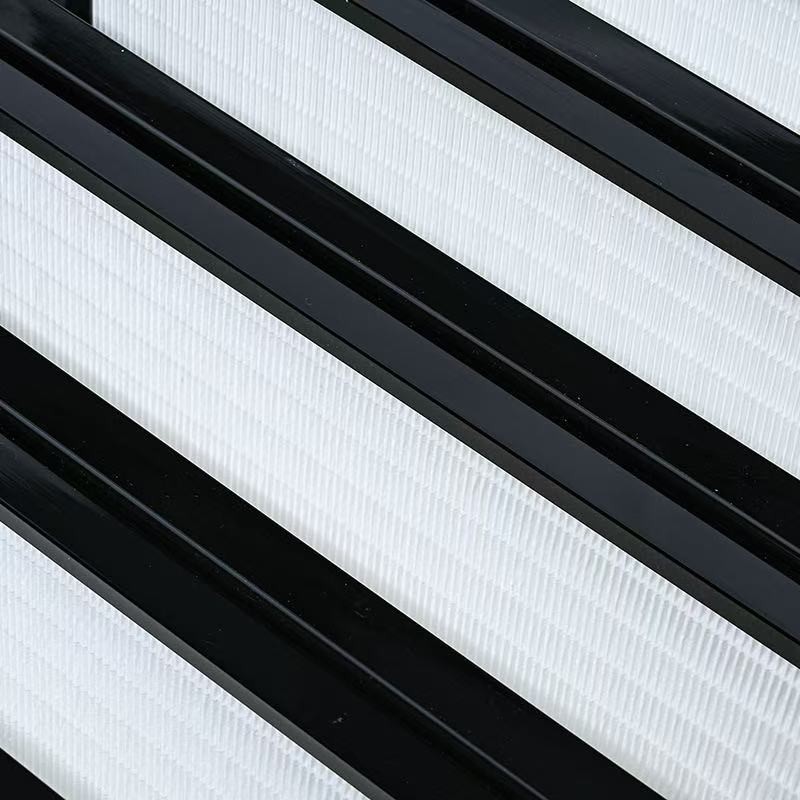

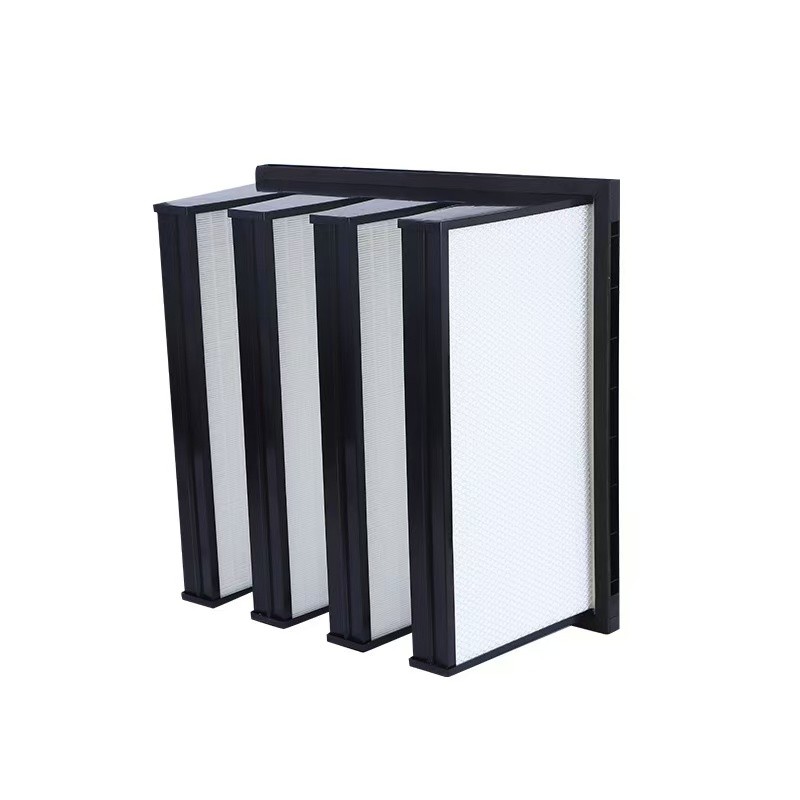

The V-bank mini-pleated HEPA filter is designed to capture particles as small as 0.3 µm. It is suitable for use in industrial clean rooms and laboratories where high air quality is essential. FEATURES: - V-shaped low-pressure-drop filter - High dust-holding power & long service life - Mini-pleated design without separator - Available for Custom Sizes
Amorair mini-pleated v-bank HEPA filter features an ultra-low pressure drop, an extended media area, and a longer service life. It is a medical, industrial, and commercial grade HEPA designed specifically to perform in adverse, critical, and sensitive conditions. We provide customization services and can meet the different requirements of different industries.

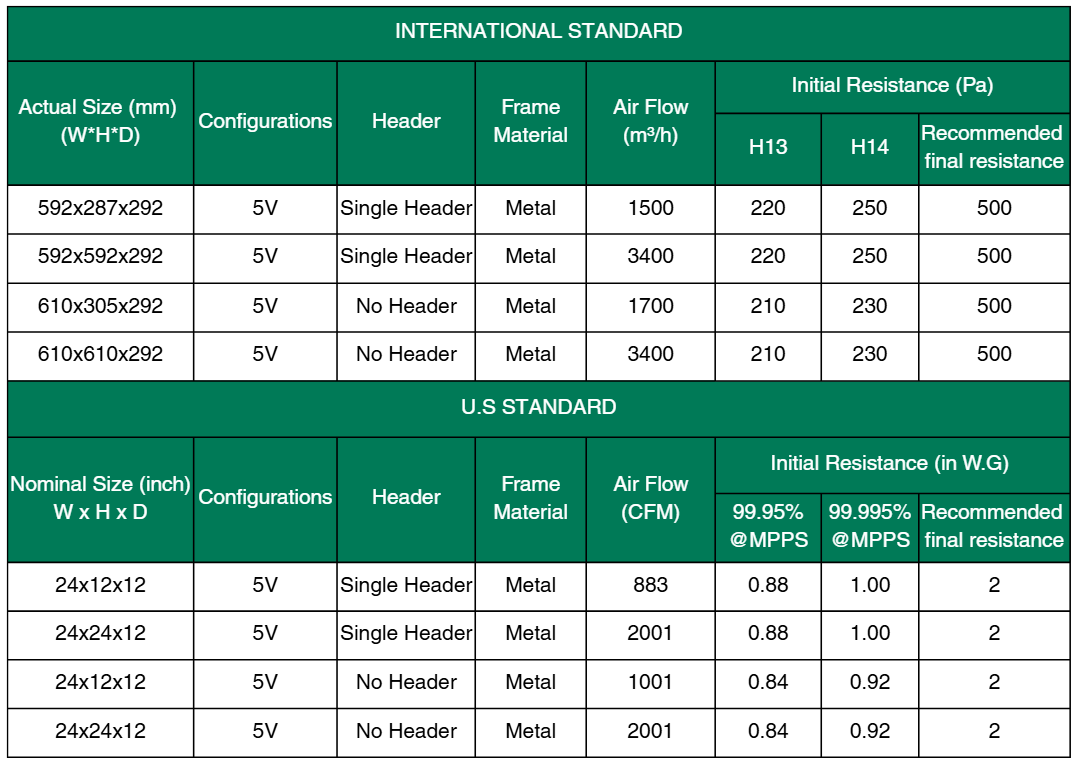

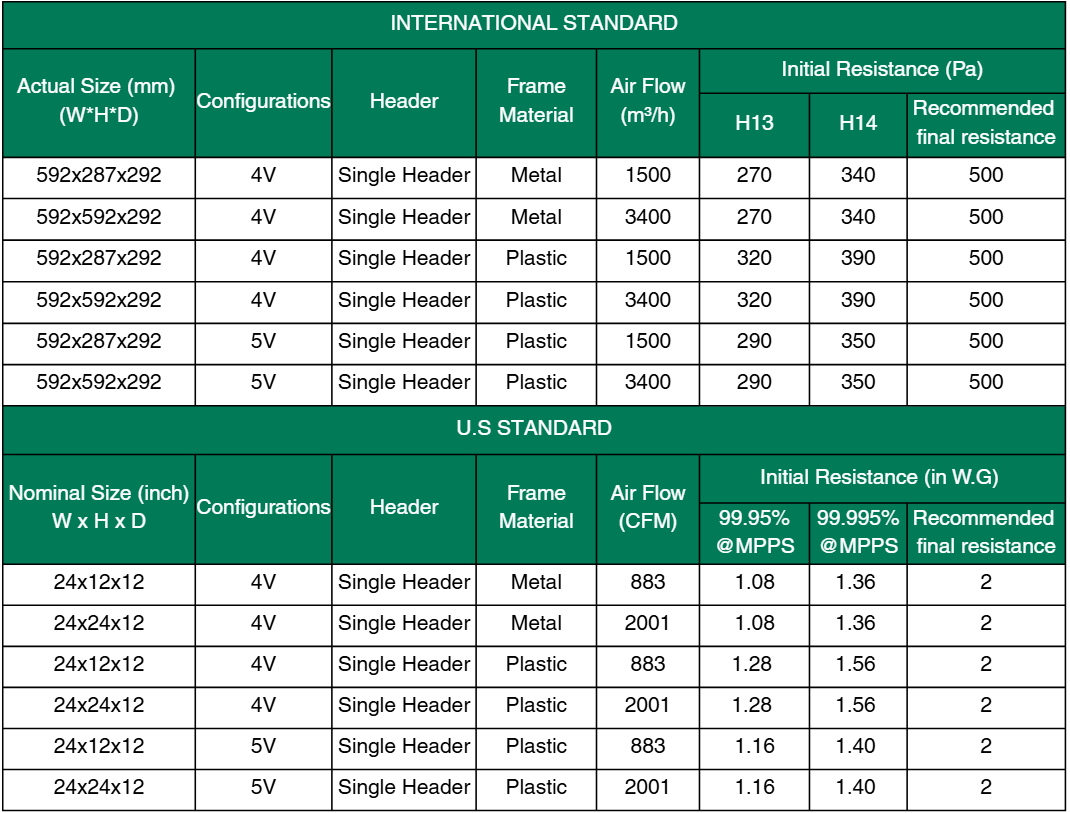

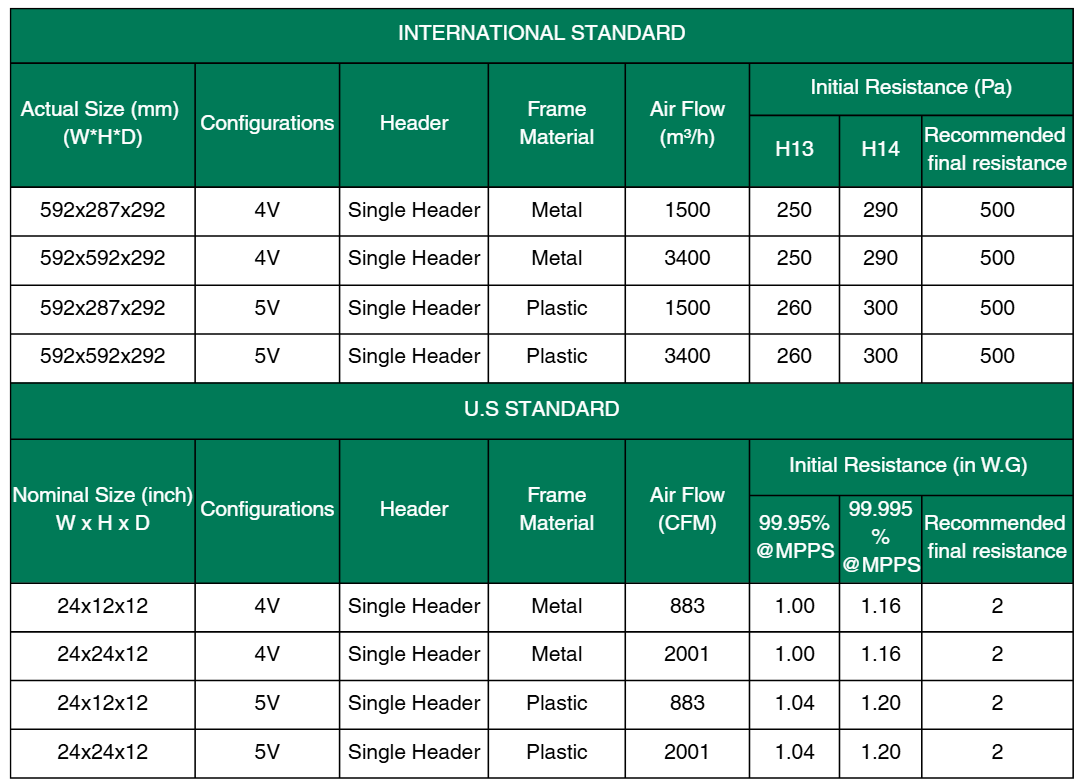

Frame Material Plastic / Galvanized Steel / Aluminum
Media Moisture-resistant Fiberglass
U.S. Efficiency 99.95%, 99.995% @ MPPS
Euro Efficiency H13, H14
Max Temperature 70 °C (158 °F)
Sealant Polyurethane
Header No Header/ Single Header
Configurations 2V,3V,4V, 5V
Frame Thickness 292mm (11.5″)
