Laminar flow hoods ensure a clean, particle-free environment with unidirectional airflow. Ideal for laboratories, cleanrooms, and sensitive applications in life sciences, healthcare, and electronics industries. Reliable contamination control with precision. FEATURES: - Double-layer negative pressure structure - Low resistance and high efficiency - Integrated fan-filter with low noise - Uniform unidirectional airflow - Clean and free of dead spots.

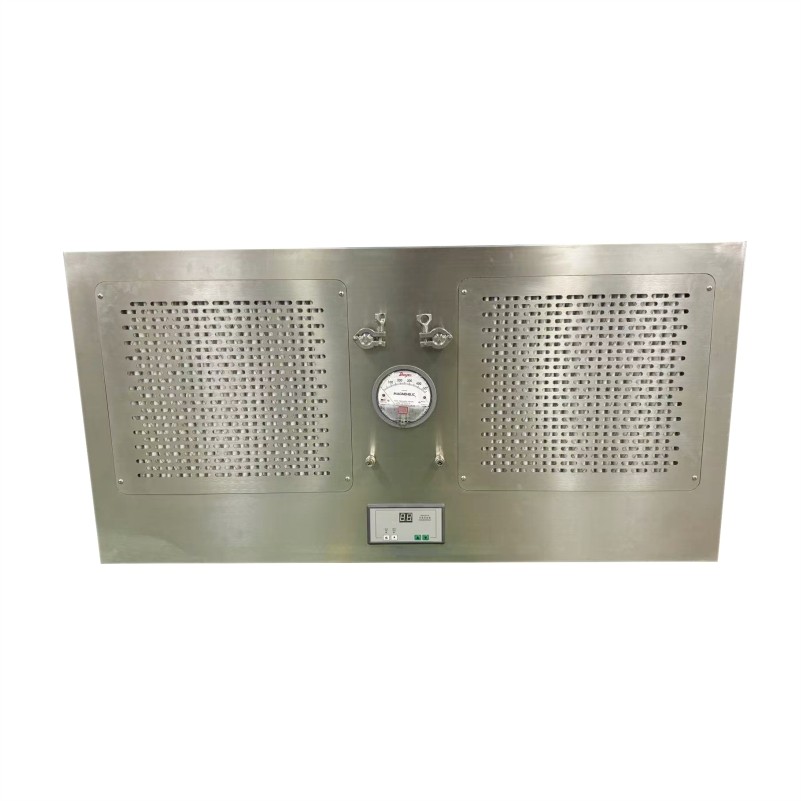

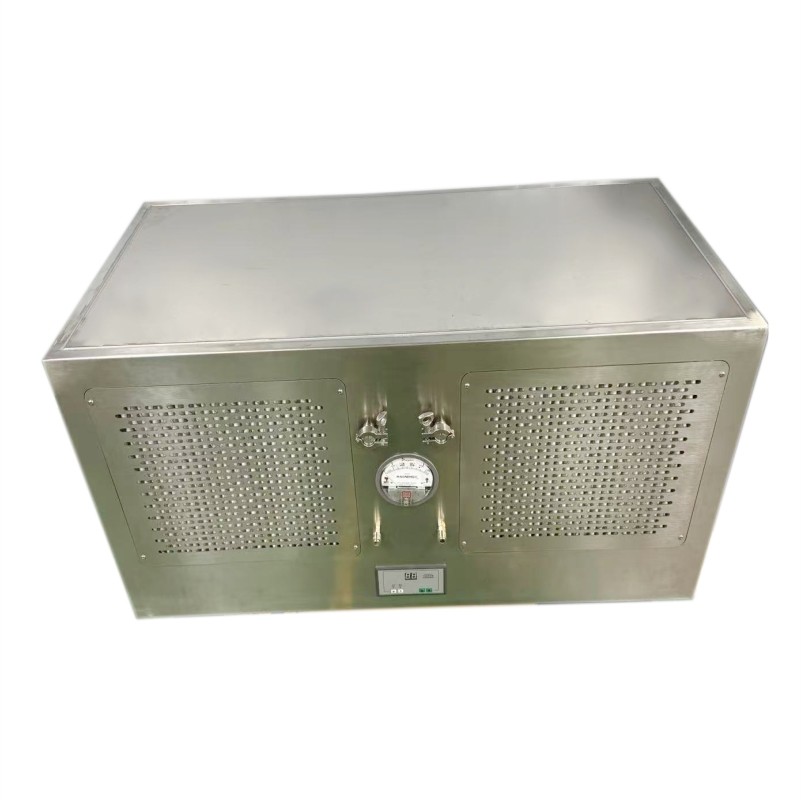

A laminar flow hood is an air purification device that provides a localized, highly clean environment. It primarily consists of a housing, fan, air filter, damping layer, and lighting. The housing is constructed entirely of stainless steel. It can be suspended or ground-mounted, boasting a compact design and ease of use.
This device adopts a vertical unidirectional airflow method. The air is first pre-filtered through a preliminary filter to remove larger particles of dust from the airflow. The pre-treated air then passes through a high-efficiency filter for secondary filtration, which serves to fully protect the high-efficiency filter. Under the pressure provided by the centrifugal fan, the air passes through the high-efficiency filter to meet cleanliness requirements, ensuring that the working area achieves the high cleanliness standards required by the process.
Size Customized according to requirements
Cleanliness Level Class 100 (ISO 5)
Filter Efficiency H14(99.995% @ MPPS)
Noise ≤ 65dB
Wind Speed 0.36-0.54M/S（71-106 FPM ）
Power Supply AC 220V,50HZ
Housing Material SUS304 stainless steel
Installation Ceiling-mounted / Floor-mounted
Air Inlet Side air inlet / Top air inlet
Applications Pharmaceutical, Medical, Laboratory, Hospital
