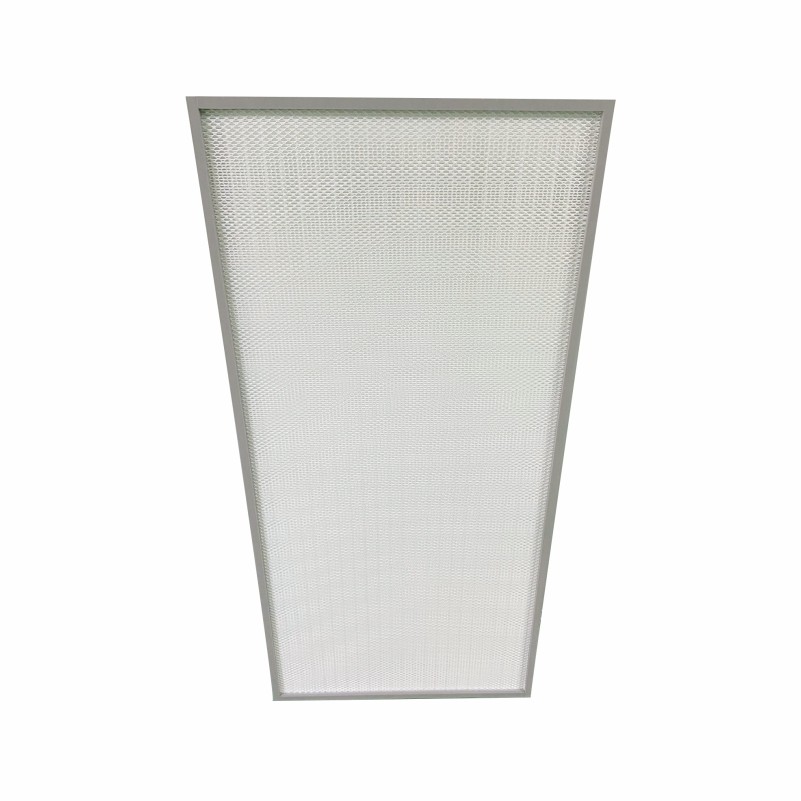

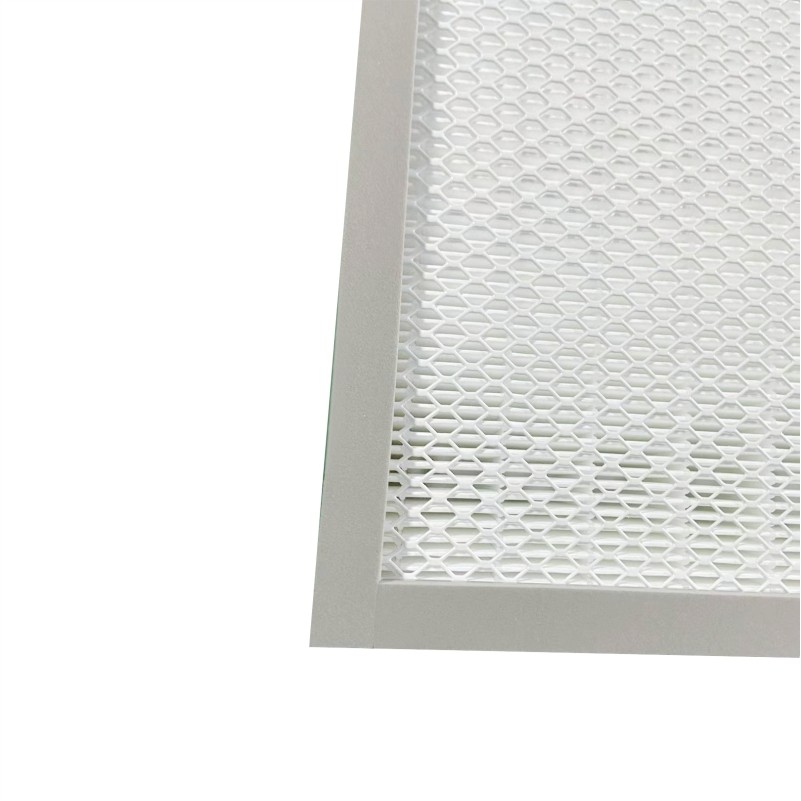

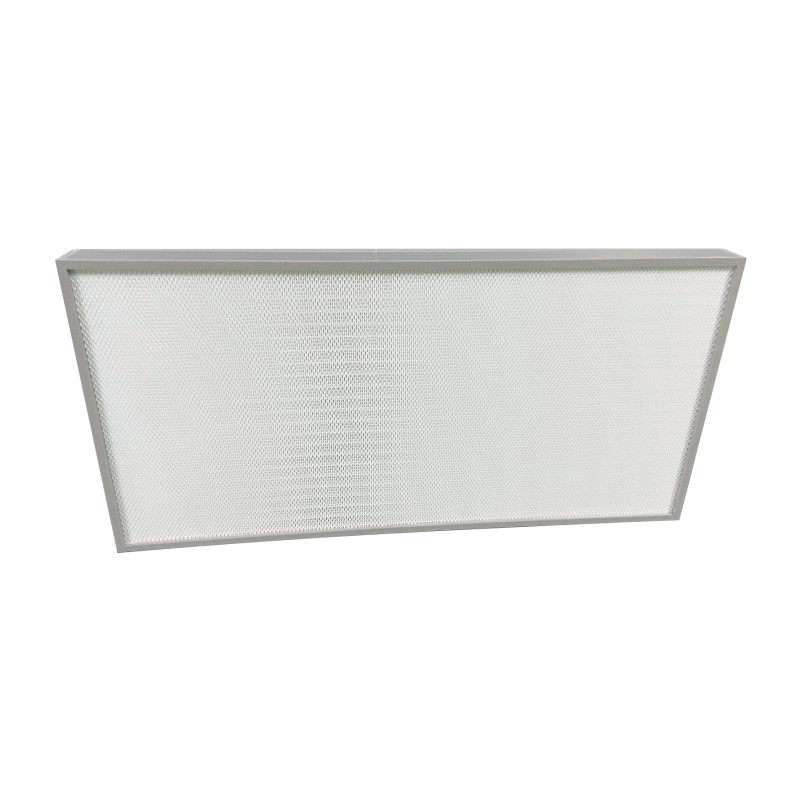

Amorair PTFE filters provide ultra-high efficiency air filtration, capturing up to 99.999995% of particles. Ideal for cleanrooms, labs, and industries requiring stringent air quality standards, ensuring maximum contamination control and performance. FEATURES: - Ultra low resistance filter media( PTFE ) - Mini-pleated design to reduce operating costs. - Available for custom sizes - 100% scan tested according to EN1822/ISO29463

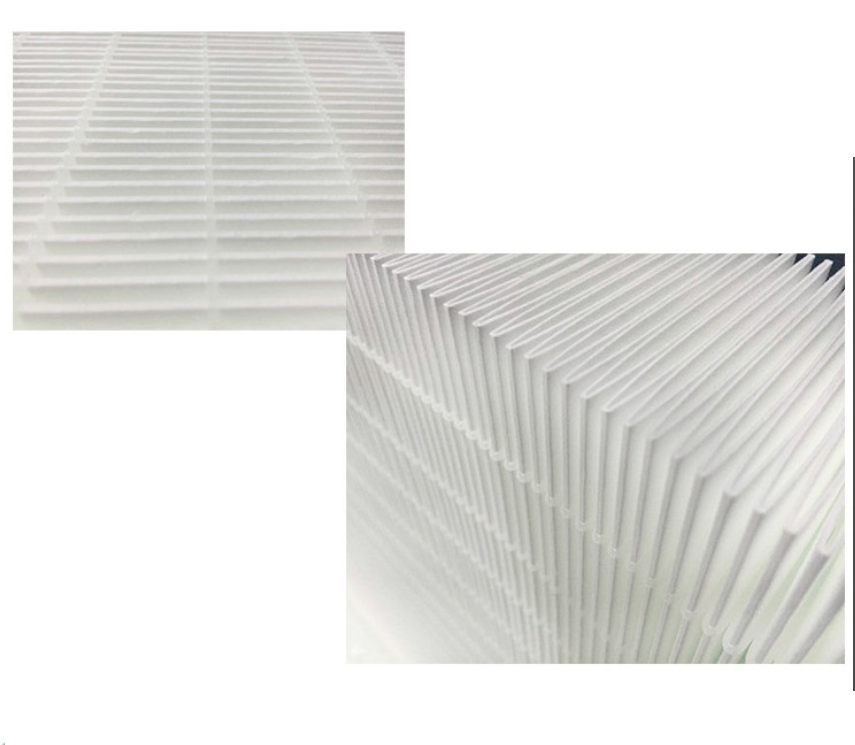

Amorair mini-pleated HEPA/ULPA filter utilizes special PTFE material, offering exceptional efficiency with ultra-low resistance, resulting in a 40% reduction in energy consumption. This filter exhibits strong resistance to environmental corrosion (acidic, alkaline, and organic substances) and possesses extremely low chemical gas emission characteristics(boron, sodium, potassium, silicon) , making it suitable for use in extreme environments. It is ideal for stringent settings such as semiconductor chip manufacturing facilities, LCD electronics factories, and modular cleanrooms.

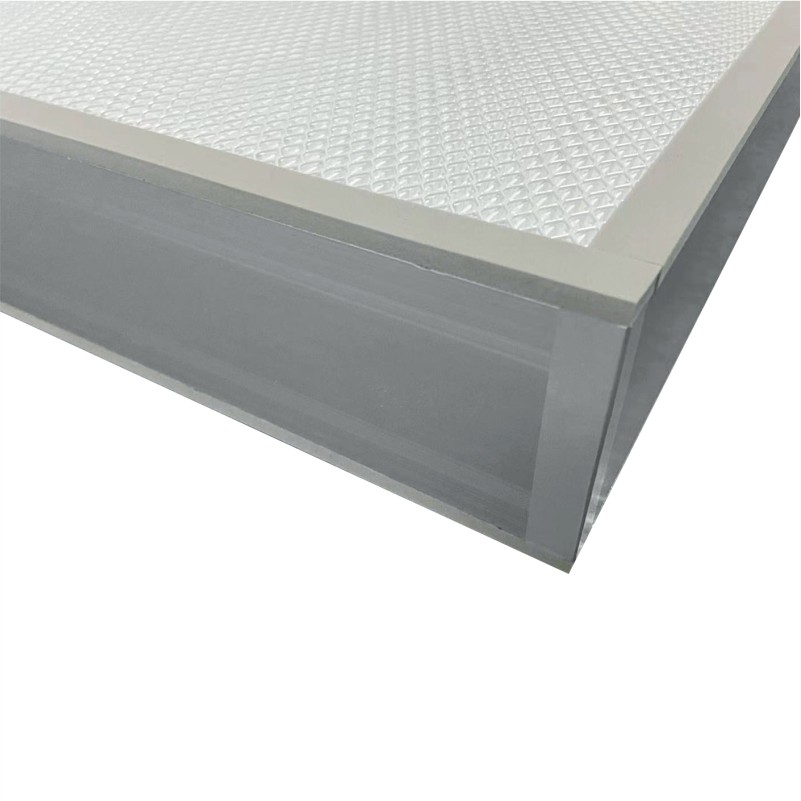

Frame Material Galvanized Steel / Aluminum
Media PTFE
U.S. Efficiency 99.95%, 99.995%, 99.9995%, 99.99995%, 99.999995% @ MPPS
Euro Efficiency H13, H14, U15, U16，U17
Max Temperature 70 °C (158 °F)
Sealant Polyurethane
Gasket Optional
Depth 30mm (1.2″) / 50mm (2″) / 70mm (2.75″), custom upon request
